CAT-6 F/UTP LSZH

Product Descriptions

Application: For transmission of analog and digital signals up to 250 Mbps; used in 10BASE-T, 100BASE-TX, 1000BASE-T (Gigabit Ethernet) and 10GBASE-T applications.

Performance: Operates up to 250 MHz, low smoke and halogen-free thanks to LSZH sheath.

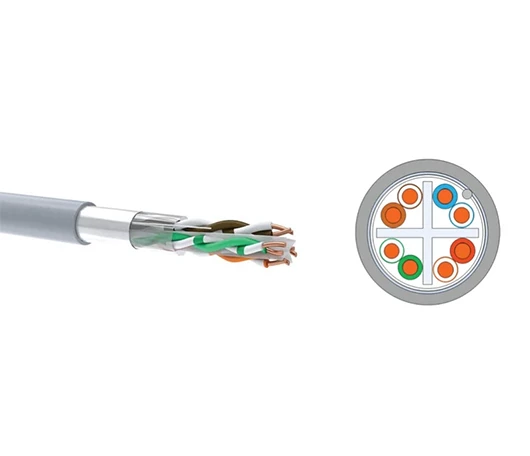

Structure

• Conductor Electrolytic copper, 23 AWG (0.57 mm)
• Insulator: Solid PE (polyethylene)
• Twist 4 twisted pairs and common twist with center element
• Screen PES separator tape + tinned earth wire + Al-PES foil
• Outer Sheath: HFFR (Low Smoke Zero Halogen) compound, Ø 6.20 mm, RAL 7001 gray

Technical Specifications

Feature Value

• Conductor Resistance [Ω/km] ≤ 94
• Insulation Resistance [MΩ-km] ≥ 5000
• Operating Voltage [V] 250
• Test Voltage (vessel/vessel) [V] 1200 AC
• Characteristic Impedance [Ω] 100 ± 15
• Effective Capacitance [pF/m] 48
• Propagation Speed [%] 67
• Operating Temperature -20 °C ... +60 °C
• Bend Radius (min.) 8 × cable Ø
• Flame Retardancy Test IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2
• Smoke Density IEC 61034-2, VDE 0482-1034-2, EN 61034-2
• Corrosive Gas Emission IEC 60754-2, VDE 0482-754-2, EN 60754-2
• Halogen Free Test IEC 60754-1, VDE 0482-754-1, EN 60754-1
