CAT-6 U/UTP

Product Descriptions

- Suitable for analog and digital signal transmission up to 250 MHz; used in 10BASE-T, 100BASE-TX, 1000BASE-T and 10GBASE-T applications

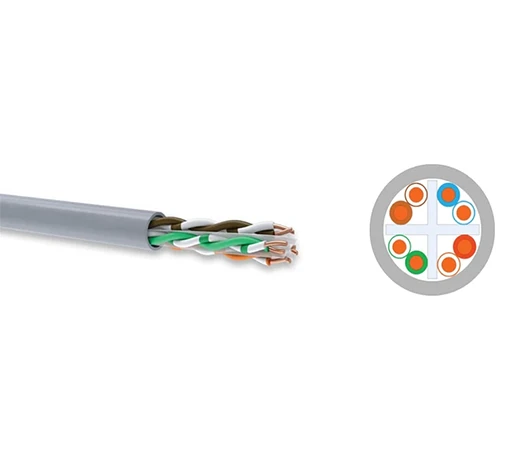

Structure

• Conductor Electrolytic copper (23 AWG)
• Insulation Solid PE
• Twist: Four twisted pairs and their twisting together with the center element
• Outer Sheath: PVC compound (Ø 6.20 mm, RAL 7001 gray)

Technical Specifications

Feature Value

• Impedance [Ω] 100 ± 15
• Attenuation [dB/100 m] - @ 100 MHz: 8, - @ 250 MHz: ≤ 24
• Conductor Resistance [Ω/km] ≤ 94
• Insulation Resistance [MΩ-km] ≥ 5000
• Operating Voltage [V] 250
• Test Voltage (vein/vessel) [V AC] 1200
• Bend Radius (min.) 8 × cable Ø
• Effective Capacitance [pF/m] 48
• Propagation Speed [%] 67
• Operating Temperature -20 °C ... +60 °C
• Flame Retardancy Test - IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2

Place of Use

• Structured cabling backbone and horizontal cabling
• For transporting Ethernet, telephone and video signals
• Up to 155 Mbps in all communications applications requiring up to 250 MHz performance
