CAT-6 U/UTP LSZH

Product Descriptions

Suitable for analog and digital signal transmission up to 250 Mbps; preferred for 10BASE-T, 100BASE-TX, 1000BASE-T (Gigabit Ethernet) and 10GBASE-T applications. LSZH (Low Smoke Zero Halogen) jacket ensures low smoke and toxic gas release in case of fire

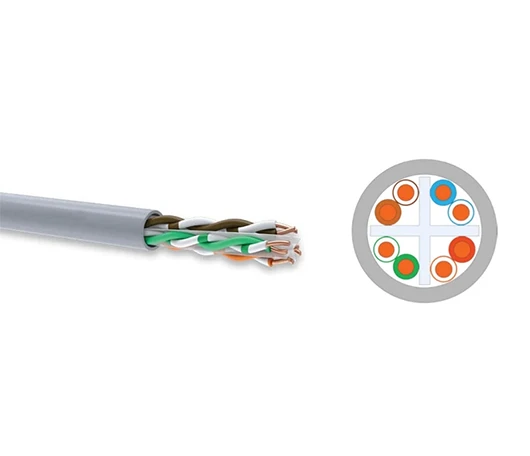

Structure

• Conductor Electrolytic copper wire, 23 AWG
• Insulation Solid PE
• Twisting: 4 twisted pairs and center element twisted together
• Screen PES separator tape + tinned earth wire + Al-PES foil
• Outer Sheath: HFFR (Halogen-Free Flame Retardant) compound, Ø 6.20 mm, RAL 7001 gray

Place of Use

• Structured cabling backbone and horizontal cabling systems
• Ethernet, telephony, video and industrial data transmission networks
• For all communication applications requiring up to 250 MHz performance
• In environments where fire risk and smoke spread are critical

Technical Specifications

Feature Value

• Impedance [Ω] 100 ± 15
• Attenuation @ 100 MHz [dB/100 m] 8.8
• Attenuation @ 250 MHz [dB/100 m] ≤ 24
• Conductor Resistance [Ω/km] ≤ 94
• Insulation Resistance [MΩ-km] ≥ 5000
• Operating Voltage [V] 250
• Test Voltage (vessel/vessel) [V] 1200 AC
• Bend Radius (min.) 8 × cable Ø
• Effective Capacitance [pF/m] 48
• Propagation Speed [%] 67
• Operating Temperature -20 °C ... +60 °C
• Flame Retardancy Test IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2
• Smoke Density Test IEC 61034-2, VDE 0482-1034-2, EN 61034-2
• Corrosive Gas Testing IEC 60754-2, VDE 0482-754-2, EN 60754-2
• Halogen Free Test IEC 60754-1, VDE 0482-754-1, EN 60754-1
• Flame Spread Test IEC 60332-3-25, VDE 0482-332-3-25, EN 60332-2-25
