EIB-2Y(St)Y | EIB (European Installation Bus) Star-Four Cable

Product Descriptions

These cables are not suitable for use as supply cables or in underground installations.

In smart building automation; It is designed for signal transmission in lighting, security, heating/cooling/ventilation, audio/visual and electrical-water-natural gas systems automation

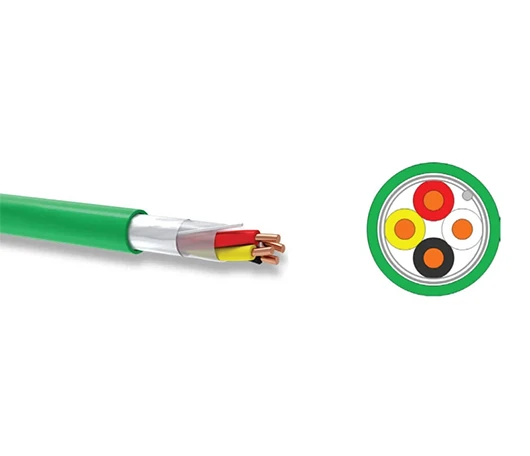

Structure

• Conductor Electrolytic copper (IEC 60228 Class 1)
• Insulator: PE compound
• Insulation Color: VDE 0815 color coded
• Twist Star-quad
• Screen PES tape + tinned copper earth wire + Al-PES tape
• Outer Sheath: YM1 PVC compound (DIN VDE 0207-5), RAL 6018 green

Technical Specifications

Feature Value

• Loop Resistance [Ω/km] 0.8 Ω/km
• Insulation Resistance [MΩ-km] ≥ 5000 MΩ-km
• Effective Capacitance [nF/km @ 1 kHz] 100 nF/km
• Operating Voltage 300 V
• Test Voltage 1000 V
• Bend Radius (min.) 10 × cable Ø
• Operating Temperature -30 °C ... +70 °C
• Flame Retardancy Standard IEC 60332-1-2 - VDE 0482-332-1-2 - EN 60332-1-2

Place of Use

• Automation in smart buildings
• Lighting systems control
• Security systems automation
• Heating, cooling and ventilation automation
• Audio and video systems automation
• Automation of electricity, water and natural gas systems
