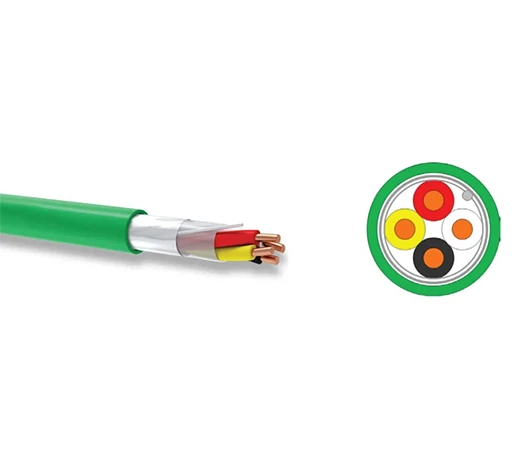

EIB-H(St)H | Halogen-free, Star-Four EIB Cable

Application Areas:

It is not used as a power supply cable or underground installation. In smart building automation systems, in particular:

• Lighting control
• Security system automation
• Heating/cooling/ventilation control
• Audio and video systems
• Automation of electricity, water and natural gas systems
• Areas where human life and critical equipment must be protected

Structural Features:

• Conductor Electrolytic copper (IEC 60228 Class 1)
• Insulator: PE compound; color coding VDE 0815
• Twist Star-quad
• Screen PES separator tape + tinned copper earth wire + Al-PES foil
• Outer Sheath: HFFR compound; RAL 6018 green

Technical Values:

Feature Value

• Loop Resistance [Ω/km] 0.8 Ω/km
• Insulation Resistance [MΩ-km] ≥ 5000 MΩ-km
• Effective Capacitance [nF/km @1 kHz] 100 nF/km
• Operating Voltage [V] 300 V
• Test Voltage [V AC] 1000 V
• Bending Radius (min.) 10 × diameter
• Operating Temperature -30 °C ... +70 °C

Fire Performance and Smoke/Corrosive Gas Tests:

• Flame Retardancy: IEC 60332-1-2 - VDE 0482-332-1-2 - EN 60332-1-2
• Smoke Density: IEC 61034-2 - VDE 0482-1034-2 - EN 61034-2
• Corrosive Gas Emission: IEC 60754-2 - VDE 0482-754-2 - EN 60754-2
• Flame Spread IEC 60332-3-25 - VDE 0482-332-3-25 - EN 60332-2-25
• Halogen-free IEC 60754-1 - VDE 0482-754-1 - EN 60754-1
