LI2Y(St)CH PIMF

LI2Y(St)CH PIMF

LI2Y(St)CH PIMF

Product Descriptions

Thanks to its flexible structure, it can be used easily in narrow spaces.

Not for use in outdoor and buried installations.

EMC: Electromagnetic compatible.

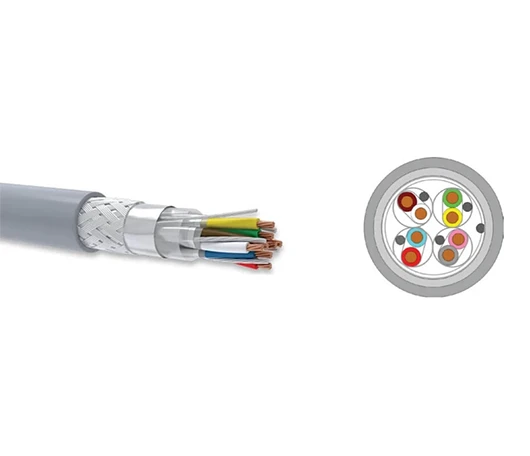

Structure

• Conductor IEC 60228; DIN VDE 0295; EN 60228 Class 2 or Class 5 electrolytic annealed or tinned copper wires
• Insulator: EN 50290-2-23 PE compound
• Insulation Color: DIN 47100 color coded
• Individual Screen PES tape + tinned copper earth wire + PES tape
• Twisting: Each shielded pair can be twisted in layers to facilitate installation
• Release Tape: PES tape
• General Screen Tinned earth wire + Al-PES foil + tinned copper wire mesh
• Outer Sheath: EN 50290-2-27 HFFR compound
• Cover Color: RAL 7001 gray

Operating Voltage:

• 0.22/0.34 mm²: 1500 V
• 0.50 mm²: 300 / 500 V

Test Voltage:

• 0.50 mm²: 2000 V AC
• Impedance (≈): 78 Ω
• Inductance: 0.67 mH/km
• Operating Temperature: -30 °C ... +70 °C
• Bend Radius (min.): 7.5 × cable Ø
• Flame Retardancy Test: IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2
• Smoke Density Test: IEC 61034-2, VDE 0482-1034-2, EN 61034-2
• Corrosive Gas Testing: IEC 60754-2, VDE 0482-754-1/2, EN 60754-2
• Flame Spread Test: IEC 60332-3-25, VDE 0482-332-3-25, EN 60332-2-25
• Halogen Free Test: IEC 60754-1, VDE 0482-754-2, EN 60754-2

Place of Use

• In closed environments where electromagnetic interference and interference are intense
• In offices and industrial spaces where people are densely populated
• Instrument and control engineering
• Industrial electronic systems
• Computer and office machine connections
• Automation systems
• High-speed data transmission applications
